Understanding the Roles of Sheet Piles in Construction Projects

Ever wondered how sea walls are built to withstand water pressure and separate land from sea? The secret lies in sheet piles.

Sheet piles are an essential material in modern construction because of their durability and versatility. Sheet piles are indispensable in a wide range of construction projects, including flood protection, retaining walls, and underground construction.

This blog explores the many applications of sheet piles in construction and why they are indispensable in modern Filipino construction.

What are Sheet Piles?

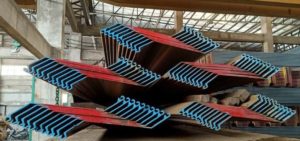

Sheet piles, typically made of steel but also available in timber and reinforced concrete, are driven into the ground and interlocked to form temporary or permanent walls. Their selection depends on the project’s complexity and the structure’s requirements.

Commonly used for water and soil retention, land reclamation, and excavation support, sheet piles in the Philippines are essential in constructing underground structures, waterfront projects, riverbank protection, sea walls, cofferdams, and bridge abutments.

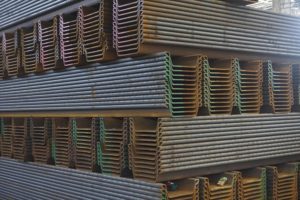

Steel sheet piles are popular for their ability to support heavy loads, offer excellent watertightness, and can be driven into rocky or various ground types with ease.

There are many sheet pile suppliers in the Philippines that’s why it’s important to find a trusted and reliable supplier that can meet your construction needs.

Key Applications of Sheet Piles

Flood Protection and Water Management

In the Philippines, flood protection is a major concern due to frequent heavy rains and rising sea levels, especially in flood-prone areas. Sheet piles are commonly used to stabilize and protect riverbanks while safeguarding nearby communities from floods, thanks to their water-retaining capabilities.

In marine projects, sheet piles retain backfill soil and help control groundwater. They are also essential for temporary excavation protection in tunnel and basement construction. Marine structures like jetties and docking walls use sheet pile walls to retain backfill and manage groundwater leakage.

Retaining Walls

Retaining walls is vital for supporting soil, preventing erosion, and ensuring stability in construction projects, from landscaping to civil engineering. Sheet piling for a retaining wall plays a key role in building durable retaining walls, providing strong support against lateral soil pressure. This allows contractors and builders to efficiently create secure, long-lasting, and stable structures.

Steel sheet piling is a type of retaining wall construction designed to resist soil and water pressures by acting as a vertically spanning beam between support points. These sheet piles are commonly used for both temporary and permanent retaining wall applications.

Underground Construction Support

Sheet piles are ideal for basement construction due to their minimal construction time and cost. Basements are prone to water intrusion due to their below-ground location, especially during heavy rains or flooding caused by typhoons and seasonal downpours.

Using sheet piles for basement construction offers an effective solution with its interlocking design, forming a watertight barrier that blocks groundwater infiltration.

For underground car parks, sheet piles offer vertical load-bearing capacity and can be installed tight against site boundaries. Their thin walls maximize parking space while reducing costs, making them an efficient and cost-effective choice.

Environmental Applications

Steel sheet piles are utilized for both temporary and permanent applications in landfill conversion, soil remediation, riverbed cleaning, and pollution containment.

Sheet piles also provide temporary access and a safe working environment for construction sites while also serving as a vital component in the permanent design of buildings, forming a foundation for other structural elements.

Advantages of Using Sheet Piles in Construction

Sheet piles are a popular construction material in the Philippines due to their numerous benefits, particularly in engineering projects. Here are some pros of choosing sheet piles in construction projects:

• Quick Installation – Installing sheet piling is much quicker to install compared to building reinforced concrete walls. The streamlined installation process can significantly reduce construction timelines, enabling projects to progress faster.

• Space Efficiency – The narrow profile of sheet piles allows them to be installed in restricted spaces. This makes them ideal for urban or congested construction sites where space is limited.

• Minimal Ground Disruption – Unlike bored or contiguous concrete piling, sheet piling does not cause significant damage to the surrounding ground. This makes it a preferred option in areas where ground stability or nearby structures might be affected by construction activities.

• No Excavation Required – Sheet piling eliminates the need for extensive excavation work. This reduces project costs, minimizes environmental impact, and speeds up the construction process.

• Versatility in Soil Types – Treated steel piles are highly versatile and can be used in virtually all soil types. Their adaptability makes them suitable for a wide range of construction environments, from soft soils to hard clay.

• Instant Load-Bearing Capacity – Once installed, sheet piles offer immediate load-bearing capabilities. This eliminates the need for waiting periods associated with other structural elements, such as curing time for concrete.

• Site Containment and Protection – Sheet piles can function as curtain walls, containing the construction site and providing security. They also protect surrounding areas from visual, noise, and environmental impacts, enhancing safety and privacy.

When to Use Sheet Piles in Your Projects

Sheet piles provide retention to ensure a stable foundation for structures. They are used to hold back land or water by driving steel sheets into the ground to resist potential damage.

For example, during high-rise building construction, excavation can cause soil to collapse. Sheet piles are driven side by side to create a retaining barrier that withstands pressure and keeps soil away from the structure.

Various sheet pile designs are used for specific retention tasks, preventing erosion, landslides, and water breaches when applied correctly.

Sheet piles are used in seawalls and bulkheads, protecting commercial shorelines, such as the reclaimed land along Roxas Boulevard by Manila Bay. They help safeguard structures against typhoons and large waves.

Team up With He-Max Industrial for Your Sheet Pile Needs

Are you looking for a reliable sheet pile supplier in the Philippines? Look no further—He-Max Industrial Corporation is the partner you are looking for!

Since 1999, we’ve been providing top-notch steel products and services to contractors, traders, distributors, fabricators, and more across the Philippines. And we’re only getting stronger!

Every He-Max product undergoes rigorous quality testing, so you can trust we’re delivering only the best. We’re proud of the long-lasting relationships we’ve built along the way, and our sales team is always ready to provide stellar service from start to finish.

Want to know more about our steel products and services? Check our website to know more.

Got questions about sheet piles in the Philippines? Reach out to us today:
