Whether you are building a multi-story warehouse, setting up a commercial building, or improving heavy-duty vehicles, choosing the right checkered plate flooring material is important for safety and long-lasting use. In busy work areas where water, oil, grease, or heavy equipment are common, smooth steel sheets can become slippery and unsafe.
To help prevent accidents while keeping floors strong and durable, many contractors and engineers use heavy-duty checkered plates. Working with a trusted steel supplier in the Philippines gives you access to high-quality steel checkered plates that can handle heavy loads, strong impacts, and the country’s hot and humid weather.
This guide explains everything you need to know about checkered plate flooring, including what they are, where they are used, their key features, what to consider before buying, and how to choose the right supplier for your project.
What is a Checkered Plate?

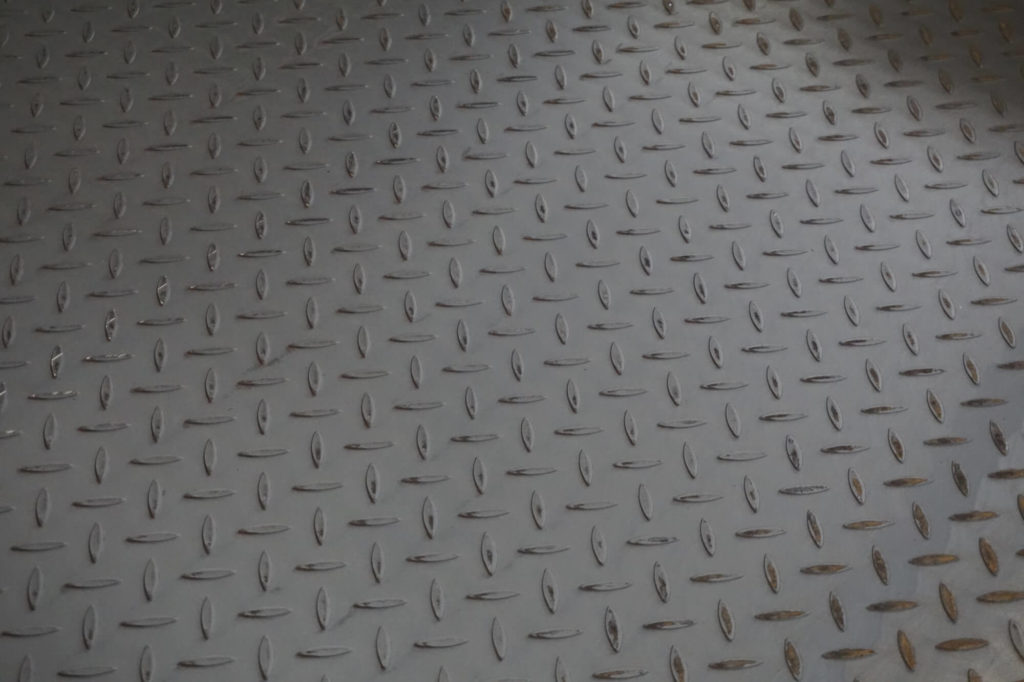

A checkered plate steel product is a flat steel sheet with a raised pattern on one side. It is also known as a diamond plate, tread plate, or floor plate. The raised pattern usually has diagonal lines, diamond shapes, or teardrop designs. These patterns are made during the steel manufacturing process to help create a stronger, slip-resistant surface.
These raised ridges improve grip, creating a high-traction, non-slip steel flooring solution that provides sure footing even when the metal is wet, greasy, or covered in debris.
While the top surface features high-friction embossing, the underside remains entirely smooth and flat, allowing the plate to sit flush against structural framing, purlins, beams, or concrete subfloors.
What is a Checkered Plate Used For?
Broadly speaking, it serves two functions: slip-and-fall prevention and surface impact protection. It is used anywhere human foot traffic or heavy-wheeled machinery that moves across elevated, inclined, or high-risk areas.
Because it combines the structural strength of hot-rolled carbon steel with functional surface traction, it is indispensable across industrial plants, transportation networks, commercial buildings, and infrastructure projects nationwide.
Common Uses of Checkered Plates in Construction & Manufacturing
Thanks to its versatility, exceptional wear resistance, and structural load capacity, checkered steel plate is specified across a wide variety of Philippine industries:
1. Industrial Flooring and Mezzanine Walkways
Floors in manufacturing plants, chemical processing facilities, power plants, and food processing factories are constantly exposed to liquid spills, machine oils, and heavy foot traffic. Installing checkered plate flooring across catwalks, raised platforms, and mezzanine levels creates a safe working environment that helps prevent serious occupational slips and falls.
2. Stair Treads, Emergency Fire Escapes, and Ramps
Outdoor staircases, structural fire escapes, and handicap-accessible ramps are heavily exposed to rain during the Philippine typhoon season. The raised pattern of checkered plates provides better shoe grip, helping reduce the risk of slips on wet surfaces.
Fabricators also bend checkered plates into stair treads and steps that stay strong under heavy foot traffic. These plates support heavy loads without bending or losing their shape.
3. Truck Beds, Trailers, and Utility Vehicle Flooring
Logistics vehicles, dump trucks, delivery vans, cargo trailers, and heavy equipment cabins undergo severe mechanical wear. Lining vehicle floors with checkered steel plate protects the underlying chassis from severe denting, gouging, and punctures caused by heavy cargo.
Simultaneously, the textured pattern keeps crates, machinery, and equipment from sliding around during transport.
4. Heavy-Duty Catwalks and Elevator Pit Covers
Power generation plants, mining operations, and commercial high-rises require sturdy covers for utility trenches, drainage pits, and elevator shafts. Custom-cut checkered plates can serve as heavy trench covers that support both maintenance crews and rolling cart traffic while keeping utility lines protected underneath.
5. Warehouse Loading Docks and Heavy Equipment Bays
Warehouse environments subject floors to continuous stress from heavy forklifts, pallet jacks, and industrial machinery transit. Checkered steel plates serve as resilient floor armor around loading bay edges, dock levelers, and transition ramps, preventing concrete cracking and surface degradation under heavy wheel loads.
Types and Specifications to Know Before Buying
You may wonder: “How do I choose the right checkered plate thickness or size?” To ensure structural safety and prevent over-spending, you must align your material selection with exact project requirements. Here are the key specifications to evaluate:
1. Material Grades and Standards
- Mild Carbon Steel (ASTM A36 / JIS SS400) – The most common, cost-effective choice for general construction, indoor walkways, vehicle flooring, and structural framing.
- Galvanized Checkered Steel – Mild steel treated with a protective zinc coating, offering enhanced corrosion resistance for outdoor or high-humidity environments.
- Stainless Checker Plate – Manufactured from Grade 304 or 316 stainless steel, offering superior chemical resistance and sanitary compliance for marine, coastal, chemical, or hygienic food-processing applications.
2. Plate Thickness Ranges
Checkered plate thickness is typically measured from the flat base plate (excluding the height of the raised diamond pattern). Choosing the right gauge depends entirely on the expected load:
- 3.0mm to 4.5mm – Ideal for light pedestrian foot traffic, residential stair treads, vehicle interior linings, and non-structural decorative cladding.
- 6.0mm – The industry standard for commercial walkways, industrial stair treads, mezzanine flooring, and utility trench covers.
- 8.0mm to 12.0mm+ – Recommended for heavy industrial platforms, forklift transit bays, bridge decks, and heavy machinery support zones.
3. Standard Sheet Sizes
- 4 ft x 8 ft – The standard commercial length widely stocked across Philippine suppliers, perfect for easy transport and standard stair tread fabrication.
- 5 ft x 20 ft – Larger profile sheets specified for expansive industrial floor platforms, reducing the total number of welded lap joints required
4. Available Finishes
- Plain / Black (Hot-Rolled) – Mill-finished untreated steel suitable for indoor dry environments or fabrication projects scheduled for custom site priming and painting.
- Galvanized Finish – Hot-dip galvanized with a protective zinc layer that offers reliable corrosion protection against rain, humidity, and atmospheric wear in outdoor or coastal applications.
- Painted / Coated Finish – Applied with industrial anti-corrosive primers or specialized topcoats for added aesthetics and dual-layer barrier protection against rust.
What to Consider When Buying Checkered Plates in the Philippines
Selecting the right product involves more than simply asking for a checkered plate price quote. To maximize budget efficiency and project performance, keep these practical factors in mind:
Load Capacity and Structural Support Spans
Always consult with a licensed structural engineer to verify that your selected plate thickness can span the distance between supporting beams or purlins without excessive deflection under maximum expected loads. Under-specifying plate thickness can result in dangerous surface flexing, permanent deformation, or weld failure over time.
Atmospheric and Environmental Exposure
Consider where the material will be installed. While black hot-rolled carbon steel is suitable for dry interior spaces, outdoor installations in humid or coastal areas require protective paint systems, hot-dip galvanizing, or stainless-steel variants to prevent rapid rust and atmospheric degradation.
Stock Supplier Availability and Lead Times
Project schedules in the Philippines often move fast, and waiting weeks for imported factory shipments can cause costly project delays. Work with a supplier that maintains continuous, high-volume local inventory across standard gauges.
Custom Shearing, Cutting, and Fabrication Needs
Ordering full commercial-sized sheets often leads to unnecessary material waste and extra labor on site. Sourcing from a supplier that offers in-house custom processing—such as shearing, bending, and base plate drilling—ensures materials arrive at your jobsite cut to exact drawing dimensions, saving labor hours and cutting waste.
Pricing and Cost Factors
While thinner plates or plain carbon steel carry a lower initial price tag, choosing the wrong grade for a heavy load or highly corrosive area leads to early replacement costs and frequent maintenance. Investing in proper thickness and protective coatings upfront yields greater long-term value.
Where Can I Buy Checkered Plates in the Philippines?
You can source high-quality checkered plates directly from He-Max Industrial Corporation, one of the nation’s most trusted industrial firms specializing in top-quality imported structural steel and custom steel fabrication services.
Why Choose He-Max Industrial Corporation as Your Steel Supplier?
Operating state-of-the-art warehouse facilities in Caloocan and Bulacan, He-Max Industrial Corporation has built a solid reputation among contractors, project developers, fabricators, and hardware distributors nationwide:
- Strict Quality Compliance – All steel-checkered plates meet international standards (ASTM, JIS) backed by full mill test report traceability.
- Massive Local Stock – Continuous volume importation ensures ready availability across standard sheet sizes, gauges, and structural sections without shipping delays.
- In-House Fabrication Capabilities – Supported by modern machinery at our Bulacan fabrication plant, we offer shearing, bending, coil slitting, and custom size fabrication to meet exact project drawings.
- Best Value Assurance – Direct mill sourcing enables He-Max Industrial Corporation to offer highly competitive pricing, providing maximum cost-to-performance value for your project budget.
Explore our complete line of steel products or learn more about our in-house custom size fabrication services. Contact our sales team today to request an itemized quotation or discuss specs with our technical specialists.
